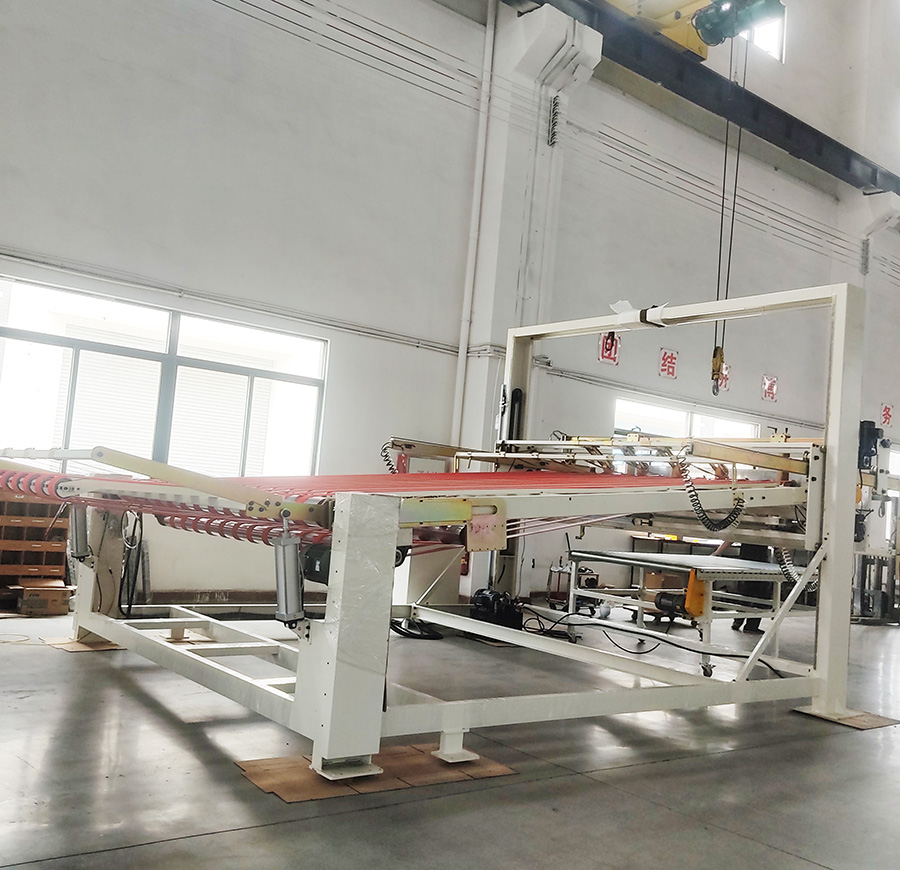

Conveyor Platform 输送平台
The platform made of new type aluminum, which have advantages of small weight, convenient adjustment and adapt to various production needs.
Double chain hydraulic system controls the rise and fall of the platform, with reliable structure and safe operation.
The rear-end of the platform is equiped with pressing bar to make the paperboard fall horizontally.
Both ends drived for independent servo motor.
Suction structure transmission, to make paperboard stable in high speed transmission.
Front-end Paper Receiving Arm 前端接纸臂
The paper receiving arm is fixed so that the paperboard can be transported smoothly at high speed.
Independent servo motor drives front paperboard receiving segment, speed adjustable.
The front paperboard receiving area is equipped with a combination of pressing bar and medium pressure fan to make the paperboard enter and convey more smoothly; this structure can manually adjust the distance.
Paper Receiving Baffle 接纸挡板
According to paperboard sizes, distance of rear receiving baffle can be adjusted to stack paperboard with different sizes.
Pneumatic slight forward push device and left-right patting device are equiped onto fron receiving baffle to make paperboard can
fall down and stack up smoothly.
Left-right patting device is manual adjustment, easy to operate.
Counting System 点数系统
It is composed of front, middle and back three segments servo and photoelectric switch. Through the precise transmission control of
the three segments servo, it can realize high speed counting stacking and the counting accuracy can reach 99%.
Counting and stacking rack can be set to automatically count and pile the cartons according to any number in 10-50 without stopping the machine. The counting is accurate and the operation is easy (patent design).
Can realize one minute counting 180-200/250copies, and can adapt the production requirements of 2 outs at one time or 3 outs at
one time;left-right-front-back 4 outs at one time and 6 outs at one time.
