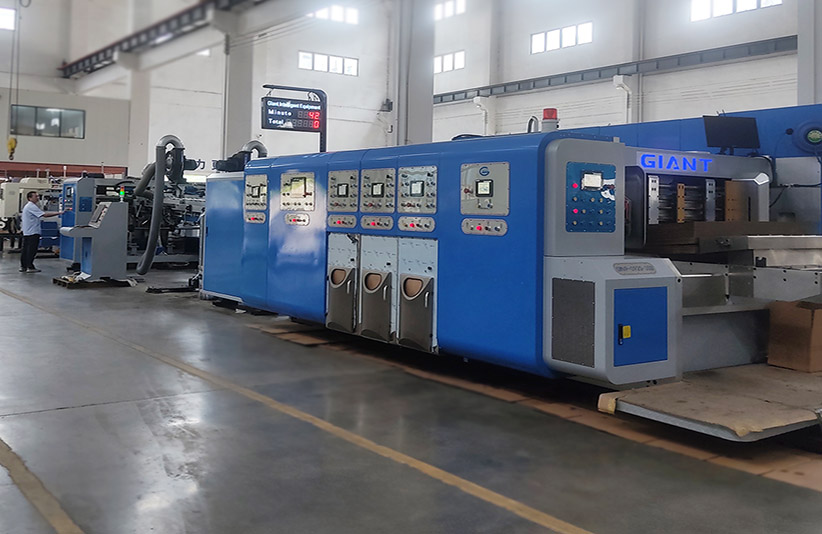

Complete Set Cardboard Box Inline Machine Gluer Stitcher Counter Ejector GMFGS-1020

Product Features:
1. Korean technology
2. Double-slot knife
3. Korean-imported folding cartons
4. Customizable machines based on customer requirements

Model	Panel size	L×W	A	B	C	Gluing Max.Speed	Stitching Max.Speed
GMFGS-0718	Max.（mm）	1800×700	700	450	900	350 sheets/min	3 Stitches 140Sheets/min
GMFGS-0718	Min.（mm）	900×270	250	200	450	350 sheets/min
GMFGS-0818	Max.（mm）	2000×800	700	450	900	300 sheets/min
GMFGS-0818	Min.（mm）	900×280	250	200	450	300 sheets/min
GMFGS-0920	Max.（mm）	2000×900	800	500	1000	260 sheets/min
GMFGS-0920	Min.（mm）	900×290	250	200	450	260 sheets/min
GMFGS-0924	Max.（mm）	2400×900	900	600	1200	260 sheets/min
GMFGS-0924	Min.（mm）	900×290	250	200	450	260 sheets/min
GMFGS-1020	Max.（mm）	2000×1000	800	500	1000	240 sheets/min
GMFGS-1020	Min.（mm）	900×300	250	200	450	240 sheets/min
GMFGS-1024	Max.（mm）	2400×1000	900	600	1200	240 sheets/min
GMFGS-1024	Min.（mm）	900×300	250	200	450	240 sheets/min
GMFGS-1224	Max.（mm）	2400×1200	900	600	1200	220 sheets/min
GMFGS-1224	Min.（mm）	900×320	250	200	450	220 sheets/min
GMFGS-1228	Max.（mm）	2800×1200	1000	700	1400	200 sheets/min
GMFGS-1228	Min.（mm）	900×320	250	200	450	200 sheets/min

FEEDING UNIT:

Name	Specification
Feeding system	Lead edge Feeding system
Zero position	Automatic
Total counter	Touch screen display
Machine speed	Touch screen display
Sheet clearer	Suction bolower & brush for sheet cleaning
Side guide position	Motorized,0.2kwX2ea,Touch screen display
Front stop position	Motorized,0.1kw,by jog switch
Back stop position	Motorized,0.2kw,by jog switch
Feed roll nip control	Motorized,0.2kw,Touch screen display
Unit open/close	Motorized,0.4kw,by jog switch
Lower suction blower	7.5 kw
Main motor	Inverter control:37kw

PRINTING UNIT (TOP PRINTING) ：

Name	Specification
Top printing system	optional
Bottom printing system	optional
Vacuum transfer system	optional
Ceramic anilox roller	optional
Chamber Doctor blade	optional
Doctor roller inking system	Diaphragm type ink pump
Register System	Printing registeris digital controlled by motor and PLC
	Easy to control by means of reset "0" system
Zero position	Automatic
Print cylinder register	Motorized 0.4kw,Touch screen display
Print cylinder side control	Motorized 0.2kw,Touch screen display
Impress roll nip control	Motorized 0.2kw,Touch screen display
Pull roll nip control	Motorized 0.2kw,Touch screen display
Anilox roller clearance	Motorized 0.1kw,Touch screen display
Doctor roller clearance	Motorized 0.2kw,Touch screen display
Doctor roller motor	Geared 0.4kw
Gear box oil level	Automatic control (Allunit the same)

SLOTTING UNIT (DAUL SLOTTING):

Name	Specification
Dual slot system	No need mechanical adjustment for biggercarton height
Zero position	Automatic
Panel size	Motorized(0.4kwx 4ea),Touch screen display
Slot depth size	Motorized(0.4kw),Touch screen display
Box height size	Motorized(0.4kw),Touch screen display
Cleaser nip control	Motorized,0.2kwTouch screen display
Slotter nip control	Motorized,0.2kw,Touch screen display
Scrap conveyor	0.4kw

DIE CUTTING UNIT (TOP PRINTING BOTTOM CUTTING) :

Name	Specification
Zero position	Automatic
Die roll register	Motorized 0.4kw,Touch screen display
Die roll side control	Motorized 0.2kw,Touch screen display
Anvil roll transversal movement	Automatic 70mm
Anvil roll clearance	Motorized 0.4kw,Touch screen display
Pull roll nip control	Motorized 0.2kw,Touch screen display
Scrap conveyor	0.4kw

DRYER UNIT :

·IR Dryer

·Hot air dryer

·Vacuum transfer system

Ceramic coating vacuum trance roll

Automatic control in gearbox oil level

Folder Gluer Counter Ejector(Made in Korea)

Gluer/Stitcher Folder&Counter Ejector Unit(Made in Korea):

Name	Specification
Down folding system	Optional
Up folding system	Optional
Belt transportation system	With guide, bar leads the carton box andmakes folding more accurate
Box squaring system
Main motor	AC 15kw,inverter control
Side guide positation	0.4kw X 2ea, touch screen display
Glue head position	0.4kw X 1ea,touch screen display
Pusher	0.75kw
Suction blower	2.2kw X2ea, 1.5kw X 1ea
Bottom stacking system	The boxes stack from bottom to top
Suction belt conveyor	For the best conveying accuracy
Count ejector system	For high speed production
Main motor	7.5kw
Front stop position	0.4kw,touch screen display
Back stop position	0.4kw, touch scereen display
Ejecting line control	Touch screen display
Center line control	0.4kw
Suction blower	2.2kw
Belt conveyor	0.75kw
Name	Specification
Down folding system	Optional
Up folding system	Optional
Belt transportation system	With guide, bar leads the carton box andmakes folding more accurate
Box squaring system
Main motor	AC 15kw,inverter control
Side guide positation	0.4kw X 2ea, touch screen display
Glue head position	0.4kw X 1ea,touch screen display
Pusher	0.75kw
Suction blower	2.2kw X2ea, 1.5kw X 1ea
Bottom stacking system	The boxes stack from bottom to top
Suction belt conveyor	For the best conveying accuracy
Count ejector system	For high speed production
Main motor	7.5kw
Front stop position	0.4kw,touch screen display
Back stop position	0.4kw, touch scereen display
Ejecting line control	Touch screen display
Center line control	0.4kw
Suction blower	2.2kw
Belt conveyor	0.75kw

Counter Ejector (Madein Korea)：

Twice flapping and stacking method effectively buffer the carton production speed, so theproduction speed for

the three-layer carton and five-layer carton is completely same. The rear production can equipped with inline automatic strapper, saving labor and improving production efficiency.

The up folding can effectively adapt to the folding production of various large-size cartons.
