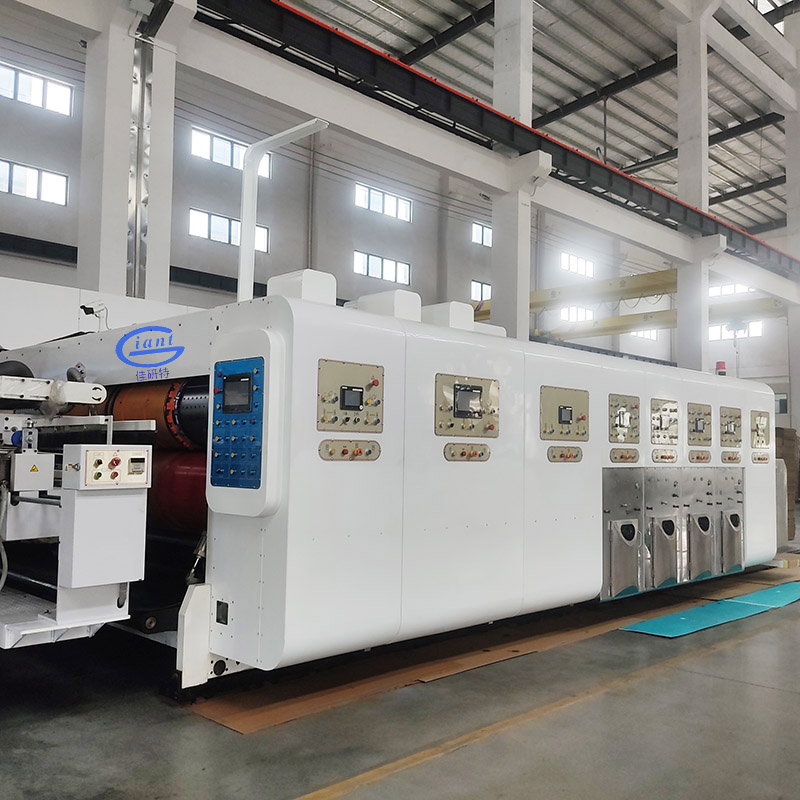

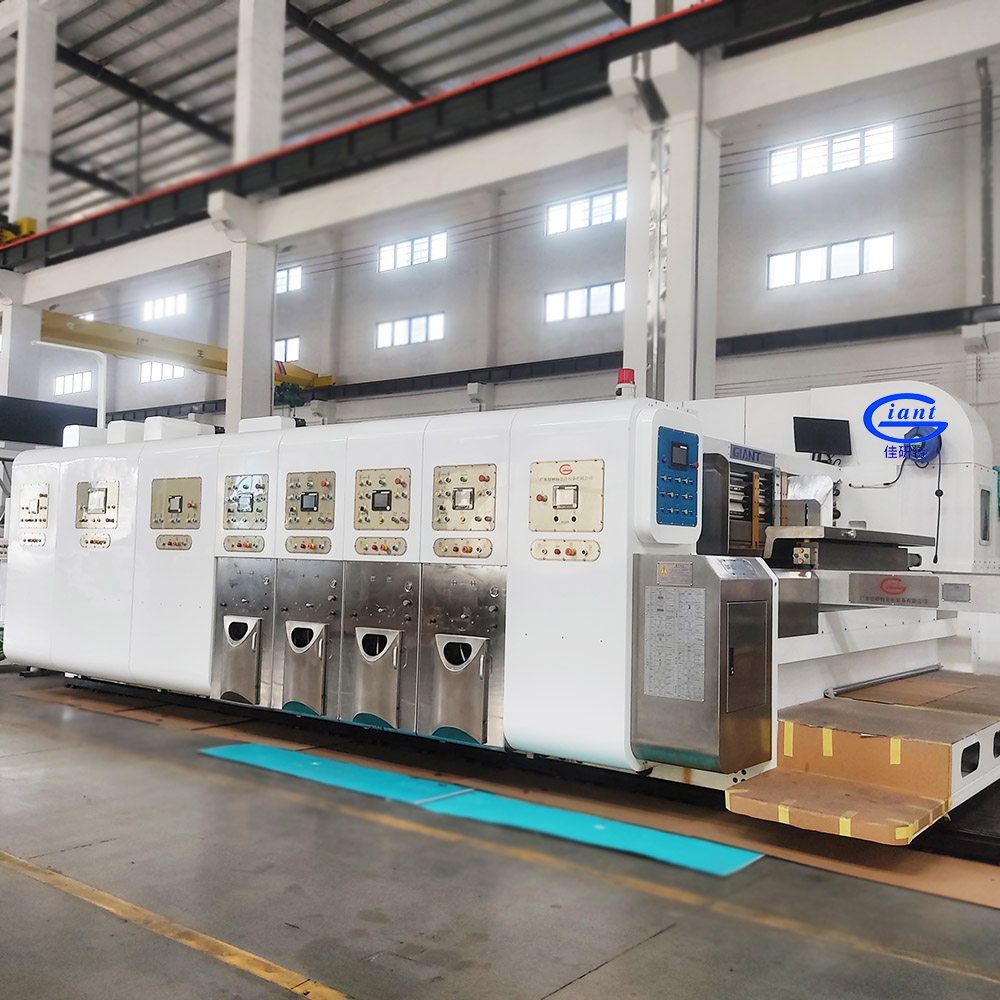

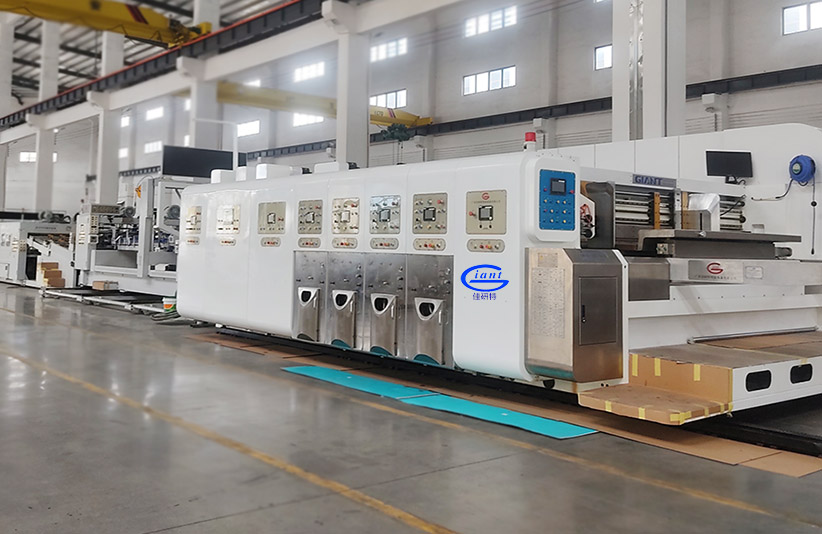

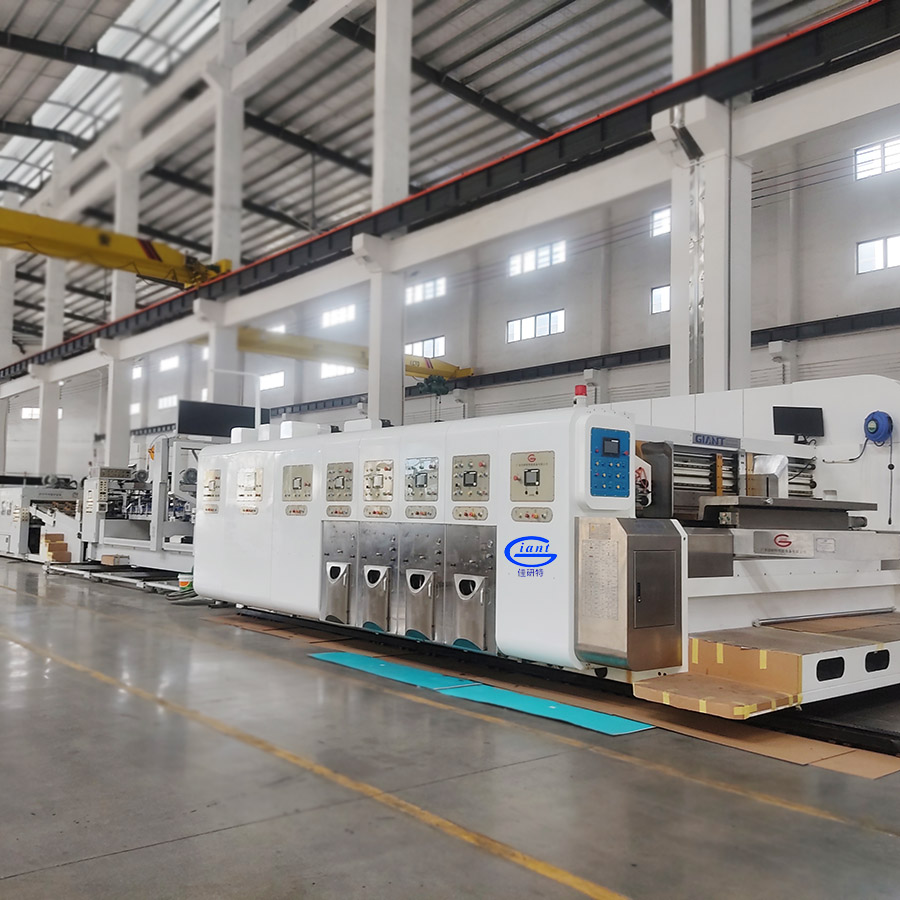

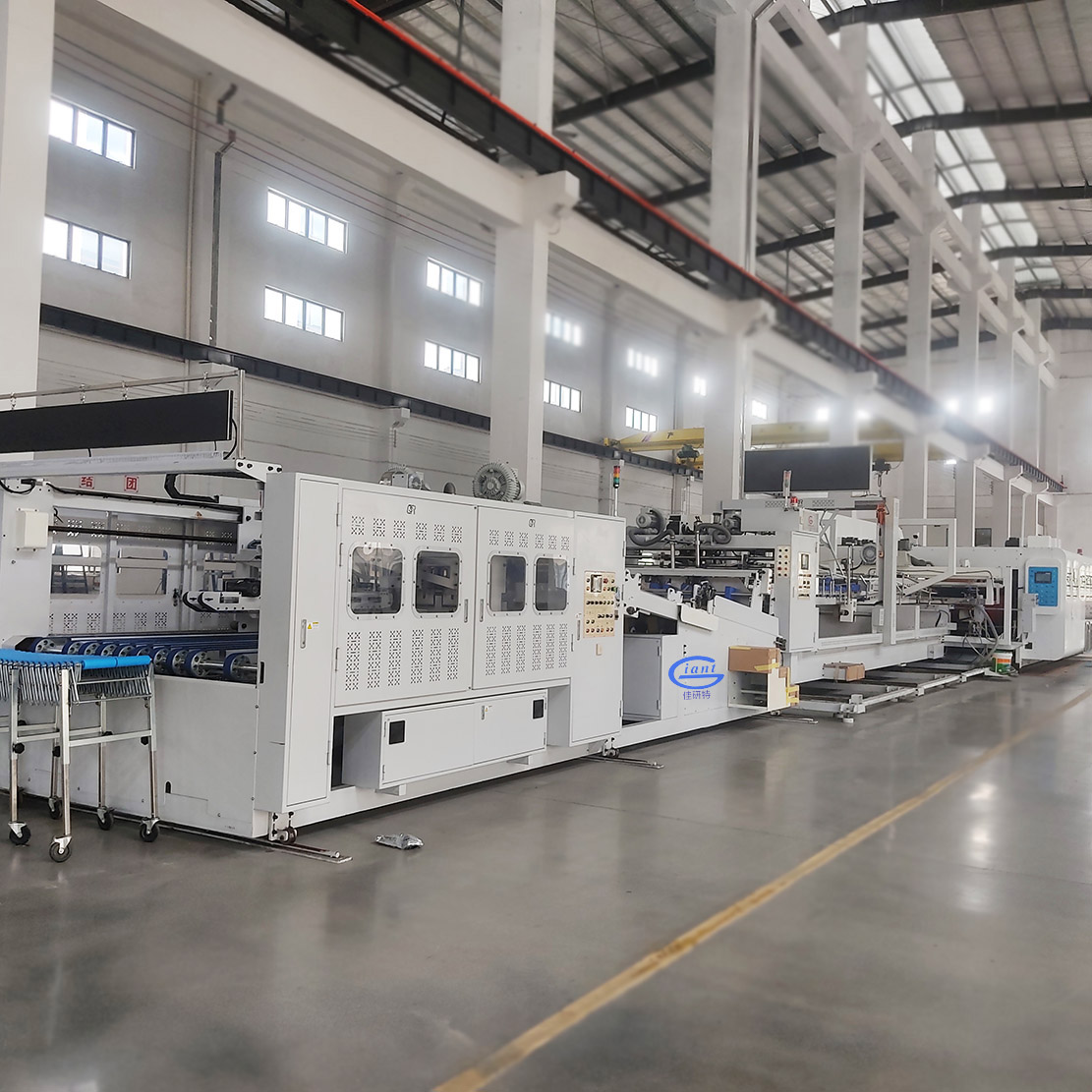

Fully Automatic Flexo Printer Slotter Die Cutter&Folder Gluer Stitcher Count Ejector Corrugated Online Machine

Product advantage Features:

1St, the cardboard does not need to be flipped over at any point in the production line.
2nd, with the printing surface facing downward, any dust on the cardboard falls off automatically, leaving the board almost completely dust-free. So,like in full-surface printing, there’s no need to frequently clean the printing plate.
3rd, the water-based ink is located at the bottom of the machine, so even after 50 years of use, the equipment remains very clean, making maintenance much easier.
4th, in the slotting and die-cutting processes, the slotting and die-cutting blades cut from the top of the liner paper downward, resulting in a very clean surface cut. Additionally, during this top-to-bottom cutting process, waste paper falls directly to the ground.

Description            Model 0718 0720 0818 0820 0920 0924 1020 1024 1220
Max.sheet size W x L mm 700x1850 700x2050 800x1850 800x2050 900x2050 900x2450 1000x2050 1000x2450 1200x2050
Min.sheet size W x L mm 260x560 260x560 270x560 270x560 280x560 280x560 300x600 300x600 320x640
Max. print size W x L mm 700x1800 700x2000 800x1800 800x2000 900x2000 900x2400 1000x2000 1000x2400 1200x2000
Max. speed Sheets/min 350sheets 350sheets 300sheets 300sheets 260sheets 250sheets 240sheets 240sheets 220sheets
Description            Model 1224 1228 1428 1628 1632 1636 1832 1836 1840
Max.sheet size W x L mm 1200x2450 1200x2850 1400x2850 1600x2850 1600x3250 1600x3650 1800x3250 1800x3650 1800x4050
Min.sheet size W x L mm 320x640 320x640 340x680 400x700 400x700 400x700 500x800 500x800 500x800
Max. print size W x L mm 1200x2400 1200x2800 1400x2800 1600x2800 1600x3200 1600x3600 1800x3200 1800x3600 1800x4000
Max. speed Sheets/min 220sheets 210sheets 180sheets 150sheets 140sheets 100sheets 100sheets 80sheets 80sheets

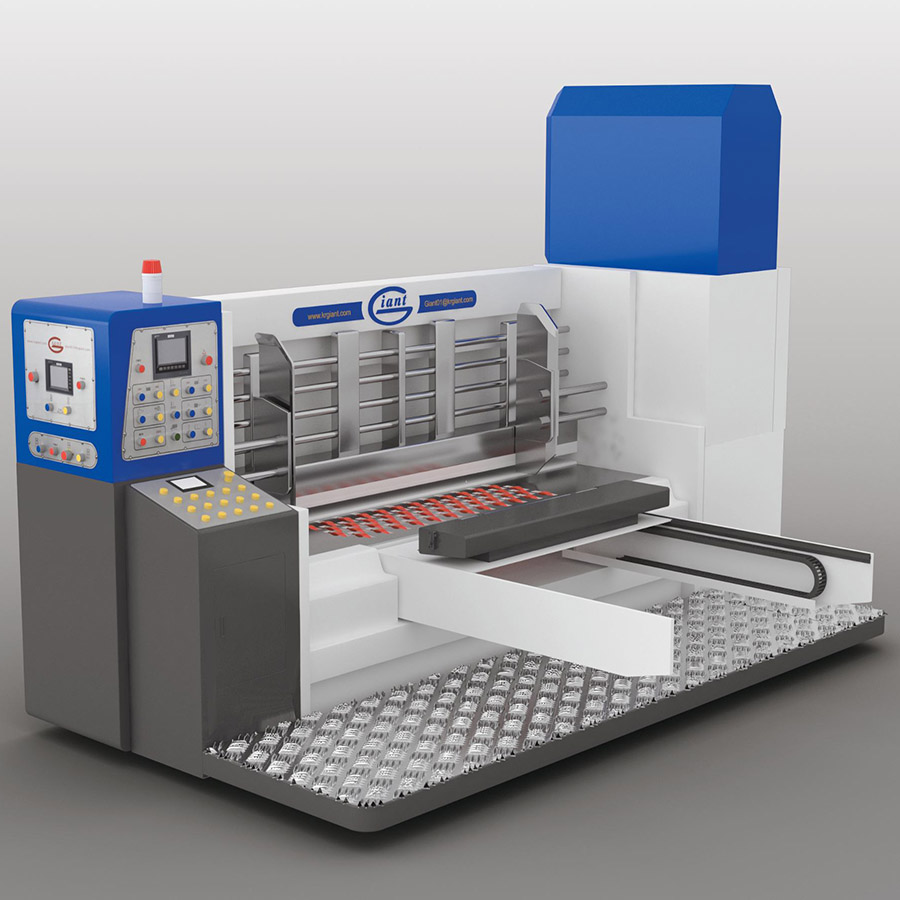

FEEDING UNIT:

Lead edge feeding system guarantees the perfect

feeding register

Automatic return to zero position

Side guide position: Automatic,touch screen display

Front stop position: Motorized Operating by jog switch

Back stop position: Motorized Operating by jog switch

Feed roll nip control: Motorized,by touch screen display

Pneumatic unit locking system,Motorized unit close/open

Continuous or skip feed with feeder counter

Dust remover to ensure high quality printing

Automatic control in gearbox oil level

PRINTING UNIT (TOP PRINTING) ：

·Top printing system

·Automatic return to zero position

·Motorized control of register, touch screen display

·Motorized impress roll nip control, touch screen display

· Motorized pull roll np control,by touch screen display

·Automatic to go down and up of Anilox

·Print cylinder when feeder starts and stops

·Pneumatic unit locking,Motorized unit close/open

·The whole vacuum feeding(optional)

· Automatic control in gearbox oil level





SLOTTING UNIT (DAUL SLOTTING):

·Dual slot system

Automatic return to zero position

·Panel size: Automatic, Touch screen display

slot depth: Automatic, Touch screen display

Box height: Automatic,Touch screen display

Creaser nip control: Motorized by jog switch

Slotter nip control: Pneumatic system

Automatic control in gearbox oil level

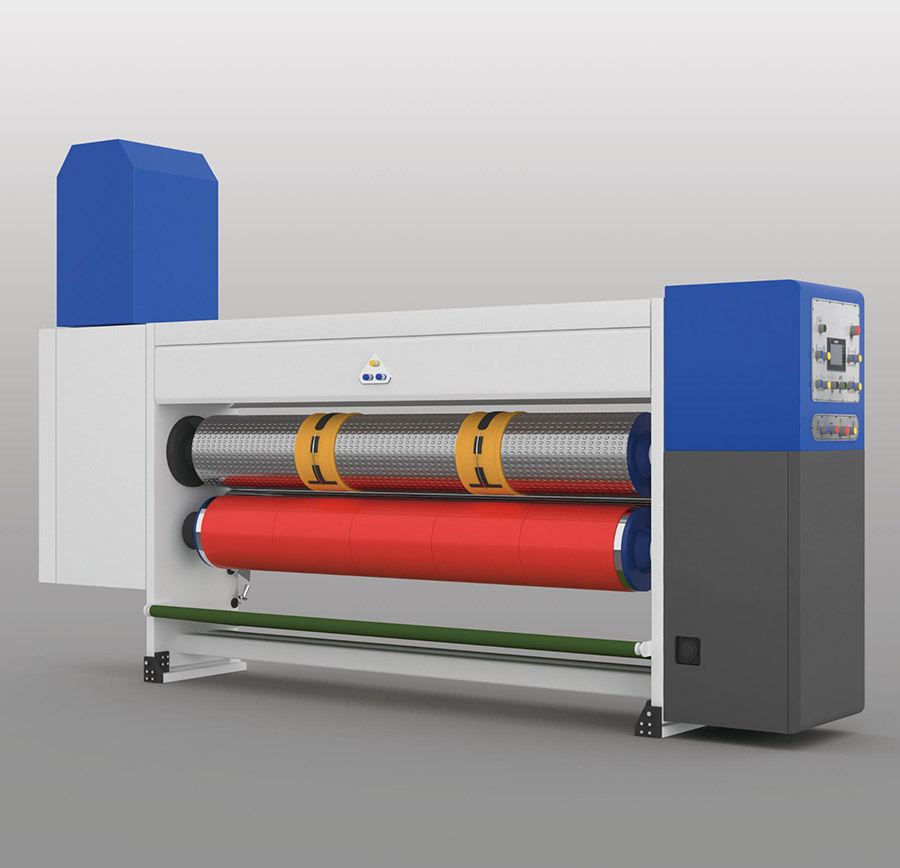

DIE CUTTING UNIT (TOP PRINTING BOTTOM CUTTING) :

·Automatic return to zero position

· Die cylinder register: Motorized,touch screen display

Die cylinder transfer: Motorized,touch screen display

·Transfer Moving of anvil roller 70/m

·Anvil roll nip control: Motorized,by touch screen display

·Pneumatic control of unit locking

·Motorized unit close/open

·Automatic control in gearbox oil level

DRYER UNIT :

·IR Dryer

·Hot air dryer

·Vacuum transfer system

Ceramic coating vacuum trance roll

Automatic control in gearbox oil level

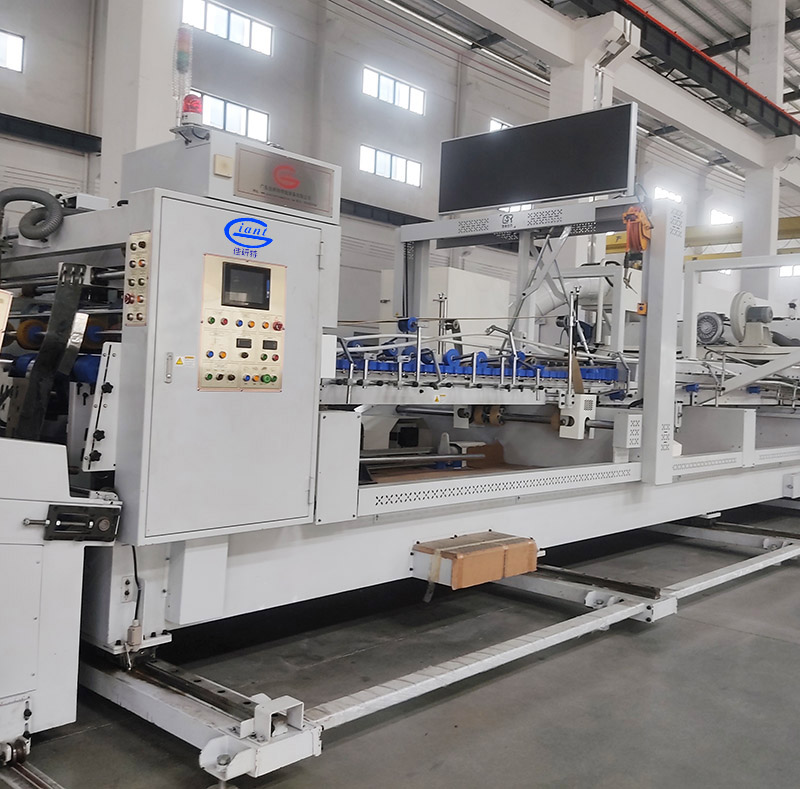

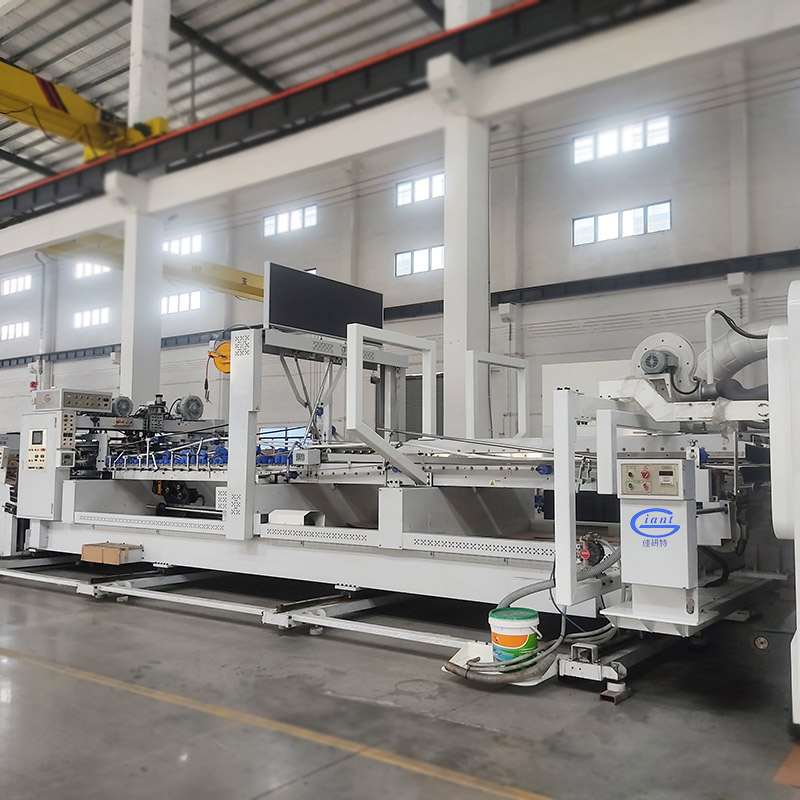

Folder Gluer Counter Ejector(Made in Korea)



Stitcher(Made in Korea):

Stitching wire is oblique cut into cardboard, has strong penetration,

and does not break the surface of the cardboard. Stitching head can be lifetime use, no need for replacement.

Double stacking design, increase glue adhesive time and ensure carton bonding effe ct.Double stacking design, equipped flap and baffle plate to effectively control thescissor mouth when the glue is not dry.

The double stacking design also extending the carton stacking and glue bonding time, ensure the carton bonding is firmer.

The parameter can be auItomatically adjusted by one button, which makes the carton folding more fast and stable, and improves production efficiency.

Twice flapping, avoid scissor mouth and prefect theshape of the carton.

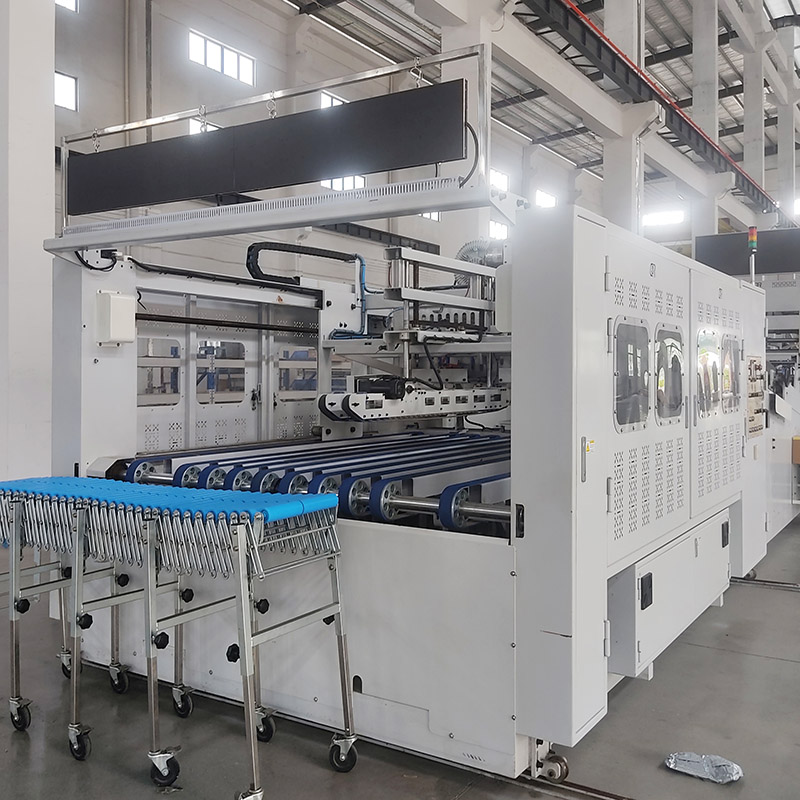

Counter Ejector (Madein Korea)：

Twice flapping and stacking method effectively buffer the carton production speed, so theproduction speed for

the three-layer carton and five-layer carton is completely same. The rear production can equipped with inline automatic strapper, saving labor and improving production efficiency.

The up folding can effectively adapt to the folding production of various large-size cartons.
