• Automatic Lateral Movement (Spiral Anvil Cover Roller): Features an automatic lateral adjustment mechanism with a 50mm-wide spiral-grooved anvil cover roller, which ensures uniform material distribution and prevents marking.
• Cutting-Die Tolerance Compensation: Equipped with an intelligent function to automatically repair and compensate for minor inconsistencies in cutting dies, ensuring consistent cut quality and prolonging die life.
| Model | DC-1220 | DC-1224 | DC-1620 | DC-1624 |
| Max.sheet size | 1200x2000mm | 1200x2400mm | 1600x2000mm | 1600x2400mm |
| Min. sheet size | 320x680mm | 320x680mm | 400x700mm | 400x700mm |
| Max. speed | 180sheet/min | 180sheet/min | 130sheet/min | 130sheet/min |
| Weight | 5600kg | 6200kg | 6400kg | 7000kg |
| Demension | 4200x2400x1970mm | 4600x2400x1970mm | 4300x2700x2050mm | 4700x2700x2050mm |
**Automatic return to zero position

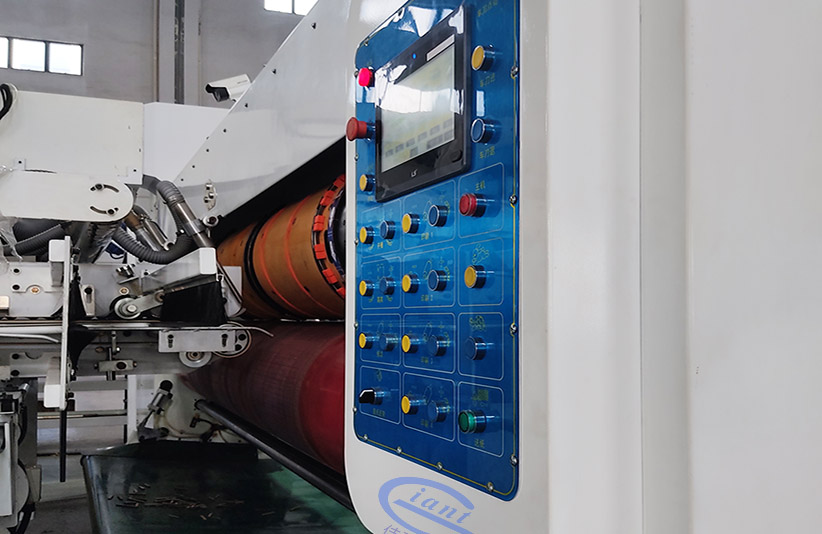

**Die cylinder register: Motorized, touch screen display
**Die cylinder transfer: Motorized, touch scren display
**Transfer moving of anvil roller: 70/m
**Anvil roll nip control: Motorized , by touch screen display
**Pull roll nip control: motorized by touch screen display
**Pneumatic control of unit locking
**Motorized unit close/open
**Automatic control in gearbox oil level
