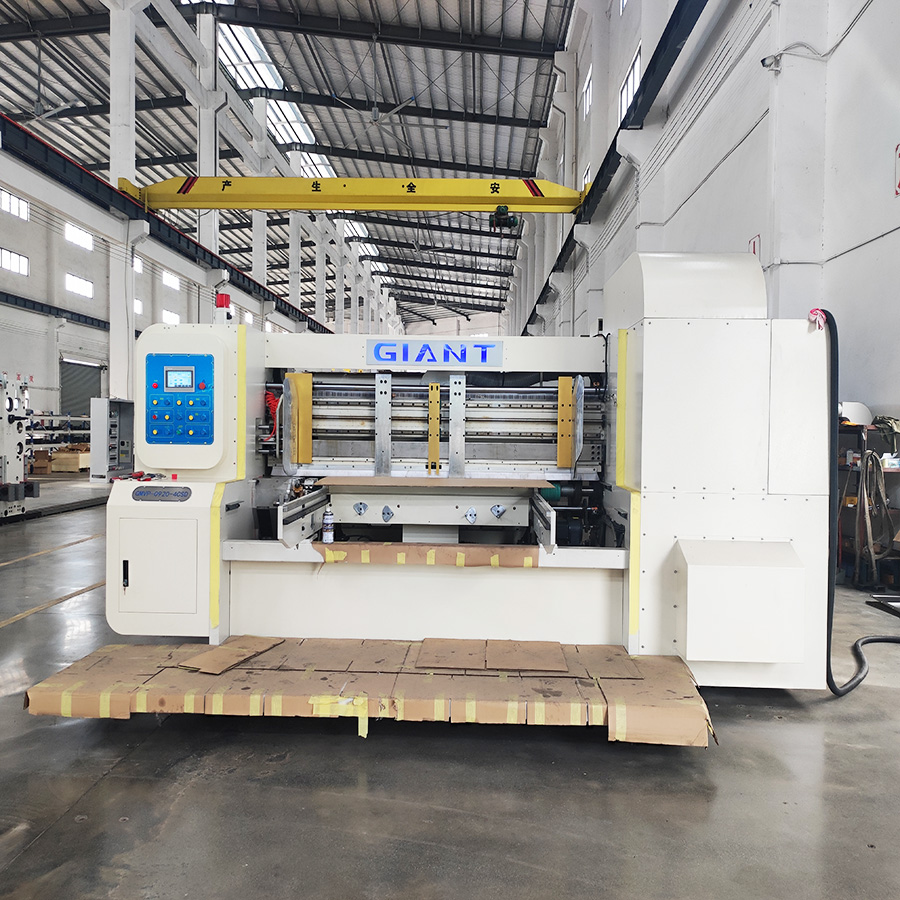

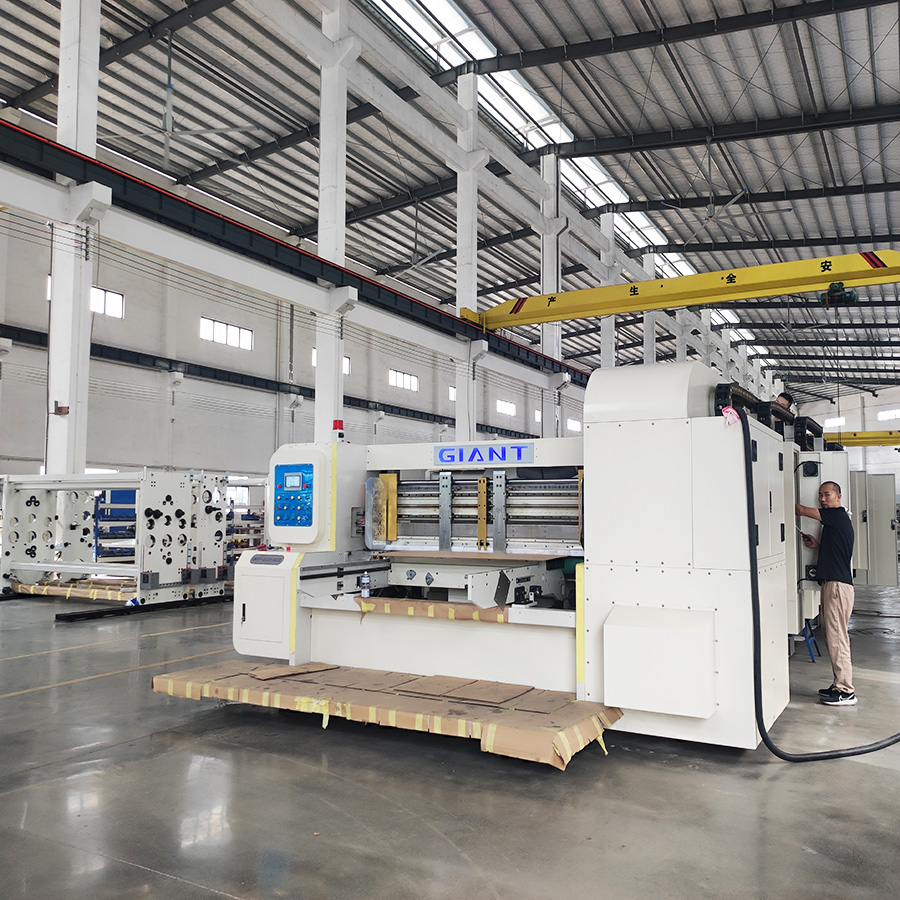

FEEDING UNIT:
Lead edge feeding system guarantees the perfect
feeding register
Automatic return to zero position
Side guide position: Automatic,touch screen display
Front stop position: Motorized Operating by jog switch
Back stop position: Motorized Operating by jog switch
Feed roll nip control: Motorized,by touch screen display
Pneumatic unit locking system,Motorized unit close/open
Continuous or skip feed with feeder counter
Dust remover to ensure high quality printing
Automatic control in gearbox oil level

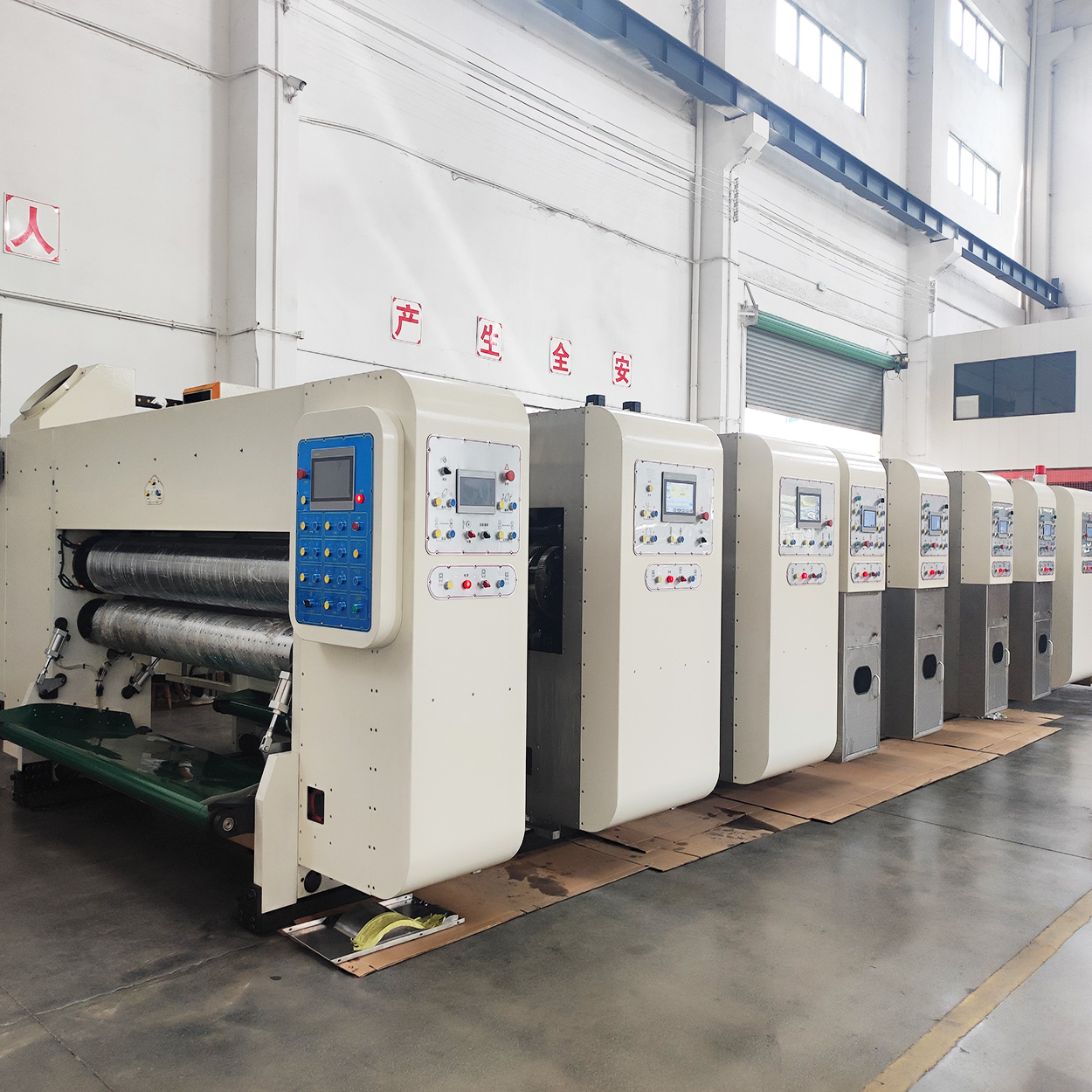

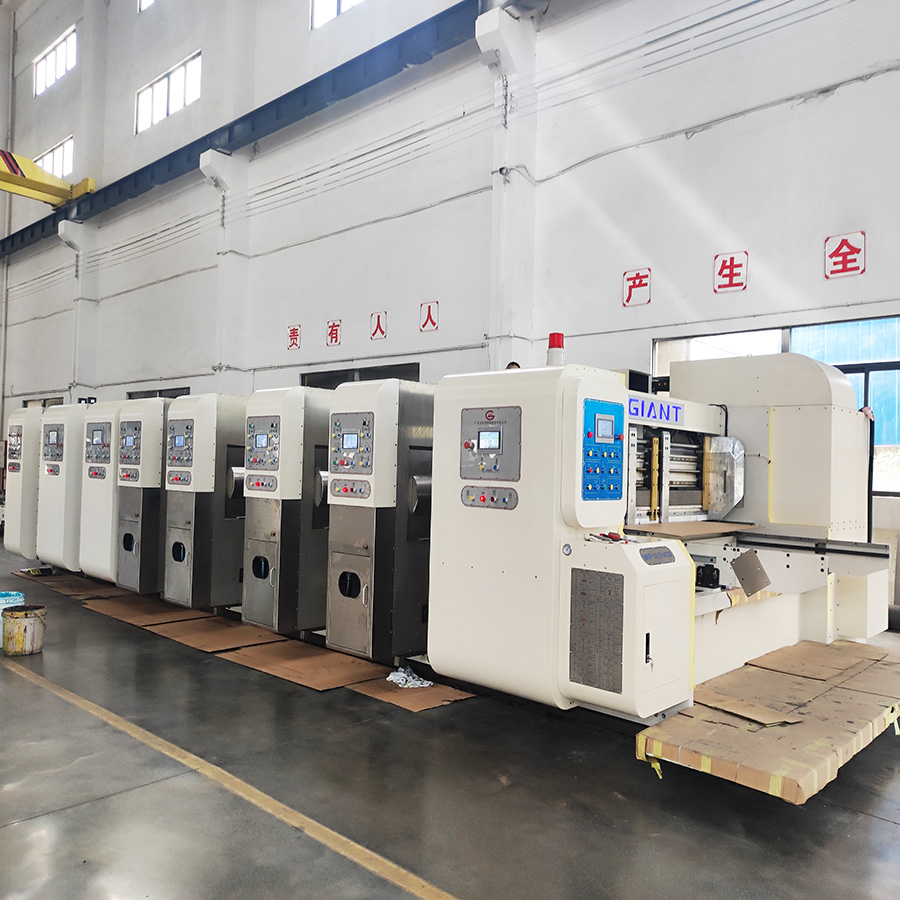

PRINTING UNIT (TOP PRINTING) ：
·Top printing system
·Automatic return to zero position
·Motorized control of register, touch screen display
·Motorized impress roll nip control, touch screen display
· Motorized pull roll np control,by touch screen display
·Automatic to go down and up of Anilox
·Print cylinder when feeder starts and stops
·Pneumatic unit locking,Motorized unit close/open
·The whole vacuum feeding(optional)
· Automatic control in gearbox oil level
SLOTTING UNIT (DAUL SLOTTING):
·Dual slot system
Automatic return to zero position
·Panel size: Automatic, Touch screen display
slot depth: Automatic, Touch screen display
Box height: Automatic,Touch screen display
Creaser nip control: Motorized by jog switch
Slotter nip control: Pneumatic system
Automatic control in gearbox oil level
DIE CUTTING UNIT (TOP PRINTING BOTTOM CUTTING) :
·Automatic return to zero position
· Die cylinder register: Motorized,touch screen display
Die cylinder transfer: Motorized,touch screen display
·Transfer Moving of anvil roller 70/m
·Anvil roll nip control: Motorized,by touch screen display
·Pneumatic control of unit locking
·Motorized unit close/open
·Automatic control in gearbox oil level

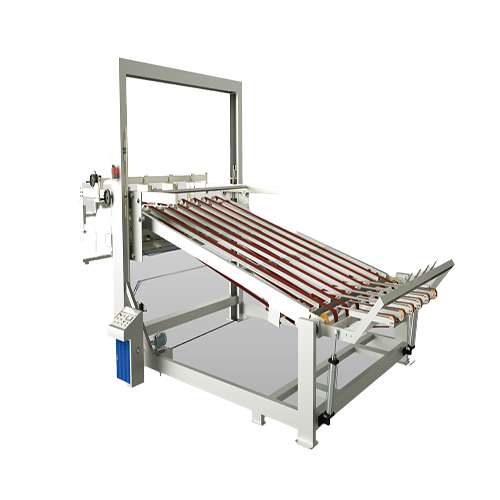

Stacker Solutions for Corrugated Board Lines
Our stacker range delivers reliable downstream handling for corrugated board production lines, available in two configurations:
Standard Stacker — Dependable high-speed stacking for routine production. Forms neat, uniform stacks with minimal operator intervention.
Counter Stacker — Adds precise electronic counting to the stacking process. Automatically separates stacks at preset counts, eliminating manual counting and reducing errors — ideal for accurate order quantities and batch traceability.
Both models feature heavy-duty frames, precision-aligned stacking tables, adjustable speed, and low-maintenance design.

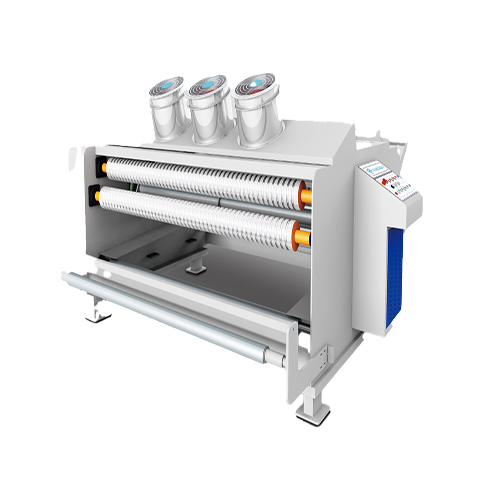

Vibrating Waste Removal Unit (for Stackers) for Optional
An optional vibrating waste removal unit can be integrated with our stackers to clear scrap and trim from die-cut sheets before stacking. The oscillating action shakes loose waste material efficiently, keeping the stacking area clean, reducing manual cleanup, and ensuring smoother downstream handling. Compact, low-maintenance, and easy to integrate with both Standard and Counter Stacker configurations.
Company Activities & customers
Finished carton boxes effection
