Breaking the ±0.5mm Barrier: How Giant Achieves Elite Print Registration at 200+ BPM
In high-speed corrugated production, the difference between a premium branded box and a wasted sheet is measured in fractions of a millimeter. When your line is running at 200+ Boxes Per Minute (BPM), even a microscopic vibration or a speck of dust can lead to "color drift," resulting in blurred logos and costly rejected batches.
For many plants, maintaining a ±0.5mm registration tolerance at high speeds feels like an impossible feat. At Giant, we've solved this through a combination of Korean-engineered stability, intelligent vacuum control, and advanced surface management. Here is the technical breakdown of how we do it.
Foundation: Zero-Backlash Transmission & Smart Lubrication
Registration accuracy starts long before the ink hits the paper. It begins in the gear train.
- Precision Engineering: Our GMVP Series utilizes high-quality alloy steel gears that undergo high-frequency quenching and precision grinding (Hardness >60 HRC). This ensures a "zero-backlash" transmission, maintaining perfect synchronization across all units.
- Automatic Gearbox Oil-Level Monitoring: To ensure this precision lasts for decades, every Giant unit (Printing, Slotting, and Die-cutting) is equipped with automatic gearbox oil-level control. This smart monitoring system guarantees optimal lubrication, reducing long-term mechanical wear and eliminating the micro-shifts in timing caused by gear friction.
Lead-Edge Feeding & Dual Dust Removal
You cannot have accurate printing if the sheet enters the machine crooked or contaminated.
- Synchronized Entry: Giant's Lead-Edge Feeder uses a servo-driven feeding stroke to ensure every sheet enters the first printing unit at the exact millisecond required.
- Advanced Dust Remover: At 200+ BPM, paper dust is the enemy of "High-Graphics" quality. Giant machines feature an integrated Dust Removal System at the feeding stage. By clearing debris before the board reaches the first print station, we prevent "hickies" and clogged plates, ensuring a clean surface for flawless ink transfer.
Full-Length Vacuum Transfer with Ceramic-Coated Rolls
The most critical factor in multi-color registration is how the sheet moves between stations.
- Zero-Slip Transport: We utilize Full-Length Vacuum Transfer units. Once a sheet is gripped, it is held firmly against the transport belts. To ensure the smoothest transition possible, Giant uses ceramic-coated transfer rolls that provide superior grip and durability without damaging the board.
- Rapid IR/Hot-Air Drying: High-speed, overlapping color requires instant drying. Giant integrates Infrared (IR) and Hot-Air Dryers between or after printing stations. This rapid-dry technology ensures that ink sets immediately, preventing smearing or "ghosting" as the board moves at lightning speed toward the slotting unit.
Intelligent Anilox Control & Ink Versatility
Precision isn't just about placement; it's about the consistent volume of ink delivered to the plate.
- Automatic Anilox Up/Down Movement: Giant's top-printing units feature intelligent Automatic Anilox Control. The rollers engage and disengage precisely to ensure stable ink film thickness, preventing over-inking or dry spots during speed fluctuations.
- Eco-Friendly Compatibility: Our systems are engineered for high-performance with both water-based and UV inks. This versatility allows you to meet the strictest environmental standards while achieving the vibrant, high-contrast results required by premium retail brands.
End-to-End Precision: From Print to Finished Box
At Giant, we know that ±0.5mm printing accuracy is only half the battle. To produce a perfect box, that precision must carry through the entire line.
Motor-Controlled Slotting & Die-Cutting: The same level of accuracy found in our print stations is extended to our motor-controlled slotting and die-cutting units. By synchronizing every stage of the GMVP Inline machine, we ensure that the folding and gluing process is perfectly aligned with the printed graphics.
Anatomy of Giant Precision

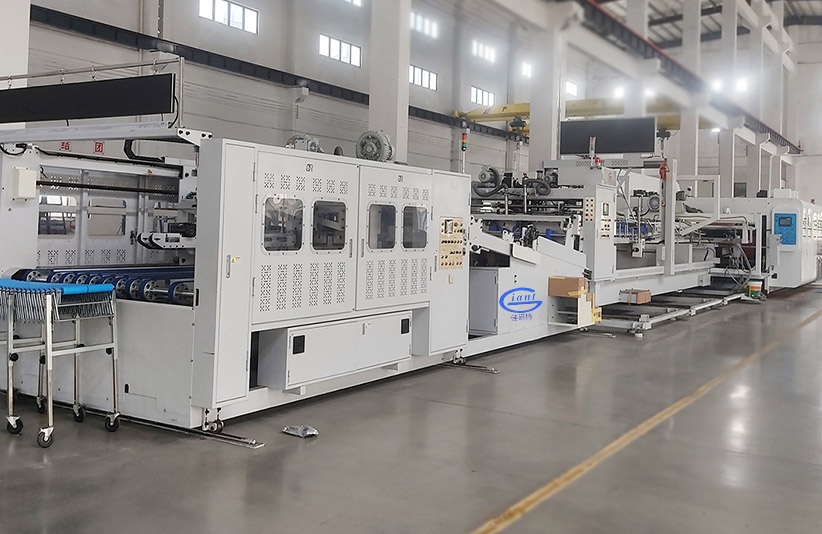

To achieve elite registration at 200+ BPM, your machine needs more than just speed—it needs a closed-loop system of stability and cleanliness. Giant's GMVP Series Machine integrates:
- Mechanical Rigidity with smart oil-level monitoring.
- Surface Purity with integrated dust removers.
- Vacuum Stability paired with ceramic-coated rolls and IR drying.
